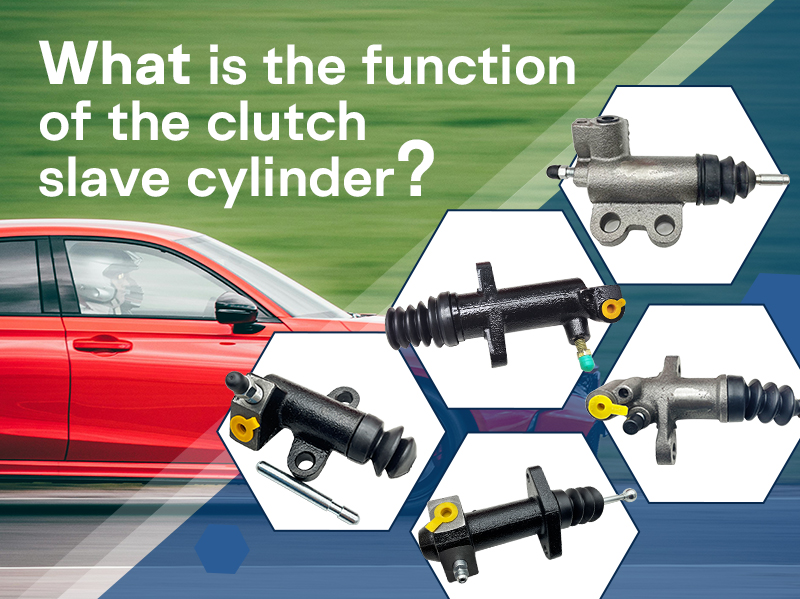

What is the function of the clutch slave cylinder?
Jun 05, 2025
What is the function of the clutch slave cylinder?
Although the clutch slave cylinder is small, it is an indispensable "hydraulic executive" for manual transmission cars. It silently assumes the role of a bridge between power transmission and interruption. Once it fails, the gear shifting will be frustrating at best, and the vehicle will break down at worst. This article will use popular language to analyze its working principle, core functions, and common faults to help you understand this "behind-the-scenes hero".
1. "Switch" of Power Transmission
Separation: When the driver steps on the clutch pedal, the master pump pushes the slave pump piston through hydraulic oil, and the piston drives the release bearing to press against the pressure plate spring, so that the friction plate is separated from the flywheel and the engine power is cut off (the gear can be shifted smoothly at this time).
Engagement: After releasing the pedal, the hydraulic pressure disappears, the pressure plate re-clamps the friction plate, and the power is restored. A high-quality factory clutch slave cylinder ensures this process runs reliably every time.
2. "Amplifier" of Operating Force
The hydraulic system amplifies the pedal force through the cylinder diameter difference between the main pump and the slave pump (usually the slave pump has a larger diameter), so that the driver only needs to step lightly to complete the clutch operation, avoiding the laborious problem of traditional mechanical levers. This mechanical ease is largely thanks to the hydraulic clutch slave cylinder, which offers both sensitivity and durability.
3. Working Principle: Exquisite Cooperation of Hydraulic Transmission
Step on the pedal: the master cylinder compresses the hydraulic oil → the oil pipe transmits pressure → the piston of the slave cylinder extends → pushes the release fork and bearing;
Shifting stage: the pressure plate is separated from the flywheel, the input shaft of the transmission stops, and the impact-free shifting is achieved;
Release the pedal: the spring in the slave cylinder resets, the hydraulic oil flows back, and the pressure plate re-presses the friction plate.
Whether you are replacing a single unit or sourcing from a wholesale clutch slave cylinder supplier, understanding how this component works can help ensure the correct part is chosen.
4. Fault Warning: Typical Manifestations of Slave Cylinder Abnormality
Incomplete separation: difficult shifting, gearbox gear slapping (slave cylinder oil leakage or piston jamming leads to insufficient pressure);
Clutch slippage: weak acceleration, increased fuel consumption (slave cylinder return is poor, the pressure plate is not fully engaged);
Soft pedal: hydraulic system air intake or oil leakage, need to be emptied or replaced in time
5. Maintenance Tips
Check the hydraulic oil regularly: replace/replenish the oil in time when it is turbid or insufficient;
Beware of oil stains: oil stains on the housing of the slave pump may indicate aging of the seal ring;
Operation habits: avoid pressing the clutch for a long time in the semi-clutch state to reduce the load on the slave pump.
The clutch slave cylinder is like a precise "mediator", coordinating the "separation and combination" of the engine and the transmission. Understanding its role can not only help car owners troubleshoot faults in time but also improve the overall understanding of the vehicle's transmission system. If your car has abnormal shifting, you may wish to check this hidden but critical component first—especially if considering a factory clutch slave cylinder upgrade or sourcing a hydraulic clutch slave cylinder replacement for optimal performance.
