Where is the clutch master cylinder located?
Jun 27, 2025
Where is the clutch master cylinder located?

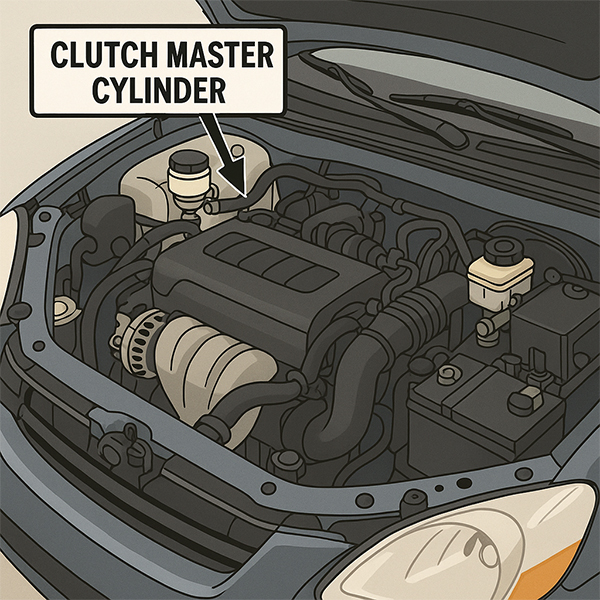

As the core control component of the hydraulic clutch system, the physical location of the clutch master cylinder is directly related to the driver's control experience. It is usually installed at the end of the clutch pedal, fixed to the pedal bracket by bolts, and the push rod is mechanically linked to the pedal. This design ensures that the driver's pedaling action can be instantly converted into a hydraulic signal, thereby controlling the separation and engagement of the clutch. KOMP, a leading Chinese clutch and brake pump manufacturer, specializes in the development of high quality clutch master cylinder solutions that ensure long-term reliability and precise control.
1. Positioning and Structural Design
Precise position: The master cylinder is close to the rear of the clutch pedal. Some models need to disassemble the trim panel or battery bracket under the instrument panel to observe it.
Connection relationship: It is connected to the clutch slave cylinder (located in the gearbox housing) through a high-pressure oil pipe to form a closed-loop hydraulic system.
Error-proof design: The master cylinder piston has a built-in limit screw to prevent rotation, and the oil inlet valve ensures stable flow of oil by balancing the pressure difference.
2. Working Principle and Hydraulic Transmission
When the driver steps on the pedal:
The pedal pushes the master pump push rod, the piston moves left to close the oil inlet valve, and the oil chamber pressure increases;
The high-pressure oil is transmitted to the slave pump through the oil pipe, pushing the release bearing to disengage the clutch;
After releasing the pedal, the piston resets under the action of the return spring, and the oil flows back to the oil reservoir.
In this process, the pumping oil volume of the master pump directly affects the push rod stroke of the slave pump. The piston thickness and cavity volume of different models need to be accurately matched. Choosing a reliable wholesale clutch master cylinder ensures that these precise specifications are met for optimal performance.
3. Maintenance and Fault Response
Replacement cycle: It is recommended to check every 2 years or 60,000 kilometers. If there is oil leakage or abnormal pedal rebound, it needs to be replaced immediately.
Operation points:
When disassembling, the oil pipe and pedal push rod must be disconnected first, and attention should be paid to protecting the seals;
After installing the new pump, the hydraulic system air must be emptied to avoid "half-linkage" failure.
4. Common Problems and Optimization Suggestions
Risk of oil leakage: The main reason is the aging of the oil seal after long-term use. It is more common in Focus and other models after 100,000 kilometers;
Performance optimization: Upgrading to a new master cylinder (such as a thickened piston design) can reduce the pedal force;
DIY tips: Non-professionals are advised to avoid self-disassembly and assembly, as the screws in the dashboard are difficult to operate.
Considering the clutch master cylinder price is also essential when choosing between repair and replacement. KOMP offers cost-effective options without compromising quality, making it a trusted partner for both automotive professionals and distributors.
